Description
Our grease filter creates a consistently fresh feel-good ambiance before, during and after cooking
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
Technical Specifications

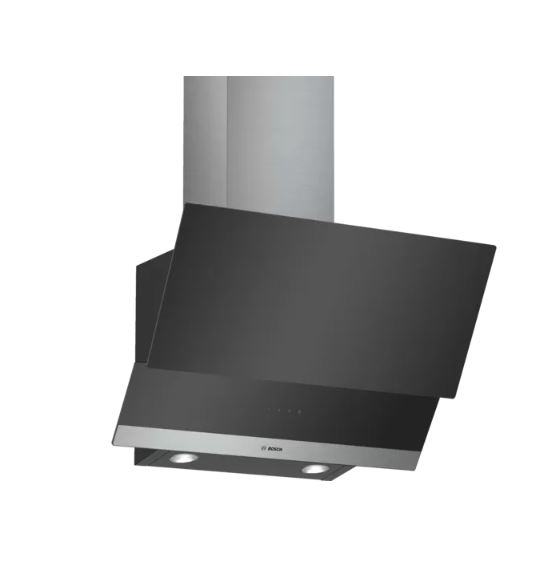

- Chimney hood
- 596 mm width
- black with glass canopy
- Suitable for ducted or re-circulated extraction
- TouchControl with Electronic display
- Electronic via TouchControl with Electronic display
- 3 speeds
- Filter cover glass

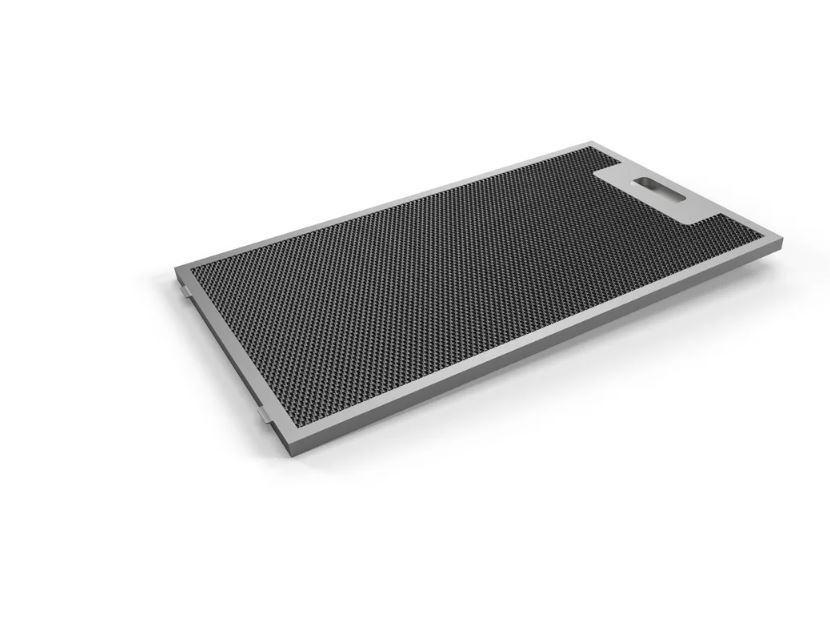

- Metal grease filter, dishwasher safe
- Dimensions exhaust air (HxWxD): 750 – 1080 x 596 x 386 mm
- Dimensions recirculating (HxWxD): 860 – 1080 x 596 x 386 mm
- Power rating: 216 W
- Wall mounted hood
- Recirculating kit
- Rim extraction
- Twin channel high performance fan motor
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Technical Information
General
Construction type
| Diameter of air outlet (mm) | 150 / 120 mm |
|---|---|
| Colour | Black |
| Grease filter material | Washable aluminium |
| Grease filter type | Kassette |
| Installation typology | Wall-mounted |
| Material of the body | Glass, Lacquered |
| Material chimney | Stainless steel |
| Motor location | Integrated motor in hood body |
| Number of motors | 1 |
| Operating Mode | Convertible |
| Typology | Chimney |
Connection
| Connection rating (W) | 216 W |
|---|---|
| Length electrical supply cord (cm) | 130 cm |
| Frequency (Hz) | 50 Hz |
| Total power of the motors (W) | 210 W |
| Voltage (V) | 220-240 V |
