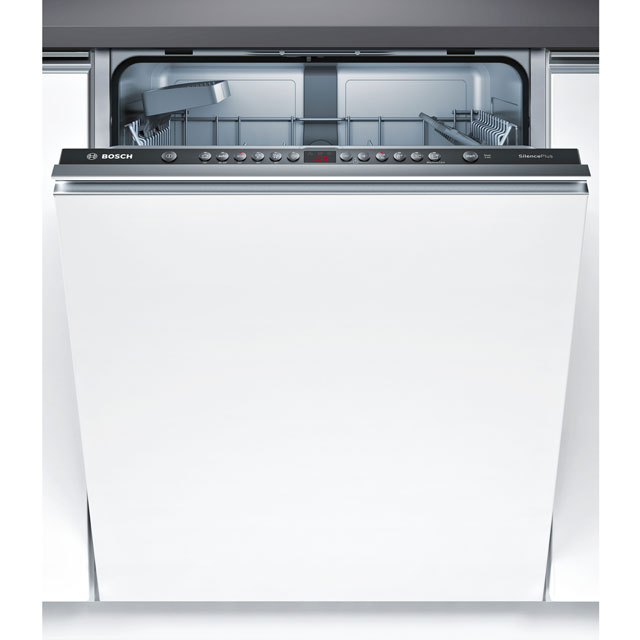

Serie | Fully-integrated dishwasher Model:-SMV46MX01E

Description

Intended use:
■ This appliance is intended
for use in the home and
domestic environments.

■ Use the dishwasher only in
the home and only for its
designated purpose: for
washing domestic dishes.
■ This appliance is intended
for use up to a maximum
altitude of 4000 metres
above sea level.

Safety instructions:
Saf et y i nst r uct i onsThis appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Technical data:
Capacity / consumption
Energy class: A ++ (on the scale of energy classes from A +++ to D)
Energy consumption in the Eco 50 program: 262 kWh per year, based on 280 standard cleaning cycles using cold water and in low power washing mode. Actual power consumption depends on how the device is used
Consumption in the Eco 50 ° C program: 0.92 kWh
Water consumption in the Eco 50 program: 1820 liters per year, based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used
Water consumption in the Eco 50 program: 6.5 l
Drying efficiency class: A on a scale from G (lowest efficiency level) to A (highest efficiency level)
The data refers to the Eco 50 program. This program is suitable for cleaning dishes with a normal degree of soiling and is characterized by the most efficient combination of energy and water consumption.
Eco 50 program duration: 235 min
Power consumption off / on: 0.1 W / 0.1 W
Duration of operation in the on state: 0 min
Water consumption in the Auto program 45-65 ° C: from 5 l, depending on the degree of soiling of the dishes
Washing efficiency: 13 sets of dishes
Noise: 46 dB (A) re 1 pW

Programs / functions
Br. program – 6: Intensive 70 ° C, Auto 45-65 ° C, Eco 50 ° C, Glass 40 ° C, TurboSpeed 20 min 60 ° C, 1h 65 ° C
6 washing temperature
Br. special functions – 2: VarioSpeed Plus, Extra Dry
Dishwasher cleaning program

Cleaning technology / sensors

• ActiveWater hydraulic system
• Water management system
• Dosing assistant
• EcoSilence Drive inverter motor
• Aqua-Sensor, Charging sensor
• Automatic detergent recognition
• Heat exchanger
• Alternating rinsing technique
• Regeneration electronics
• Self-cleaning filter with three-layer corrugated filtration system

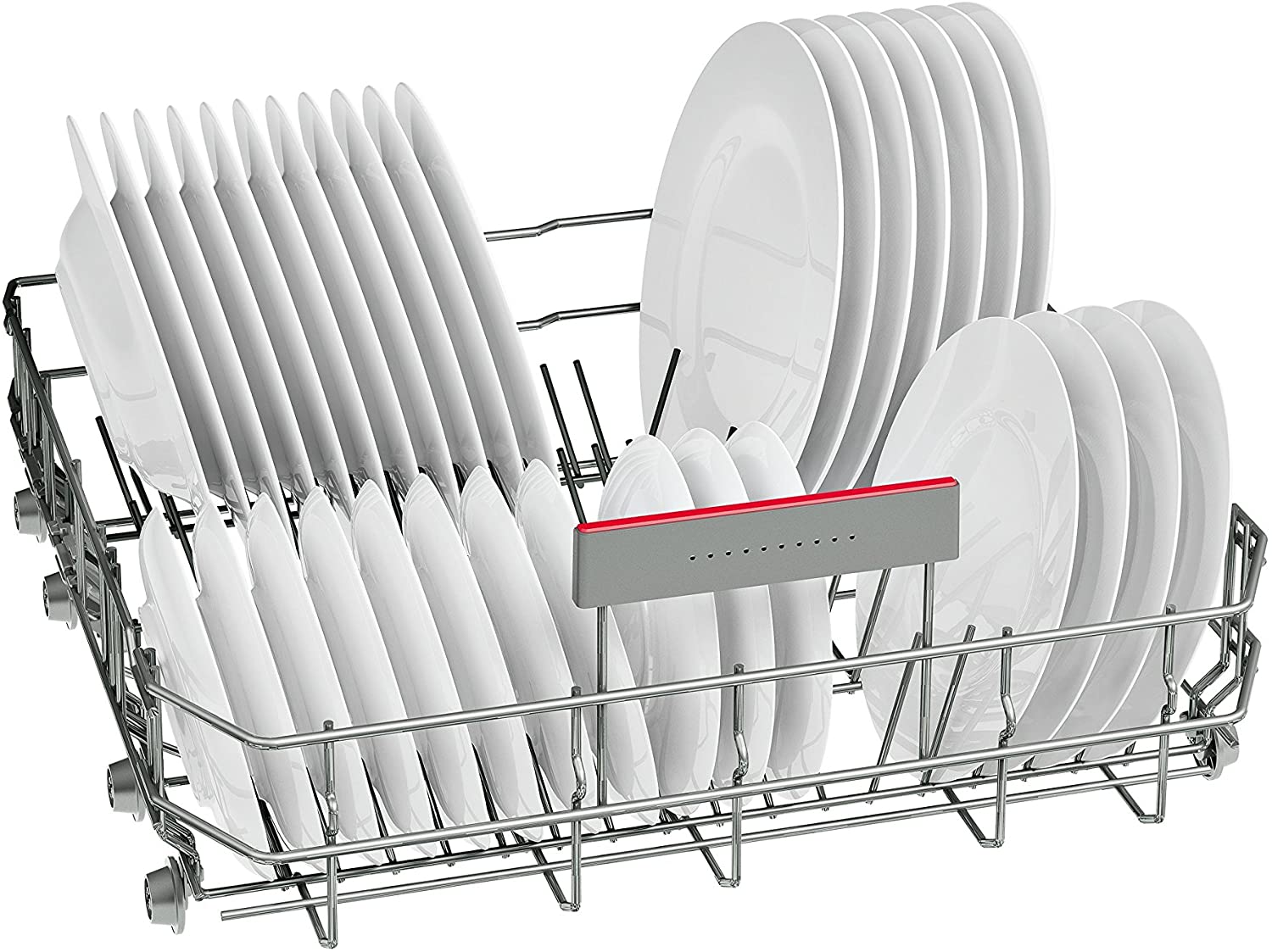

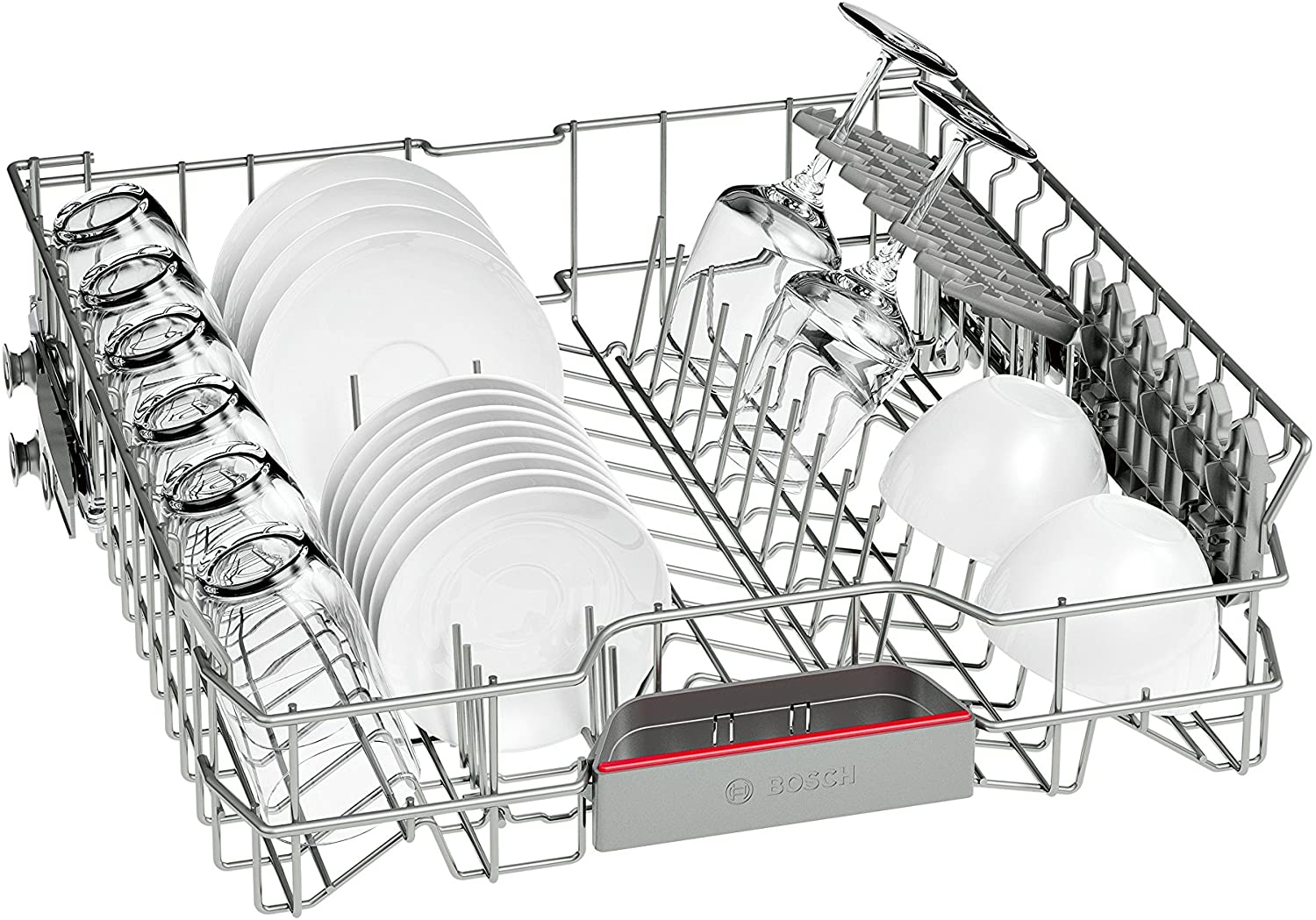

• Basket system

VarioFlex baskets

• VarioPretinac

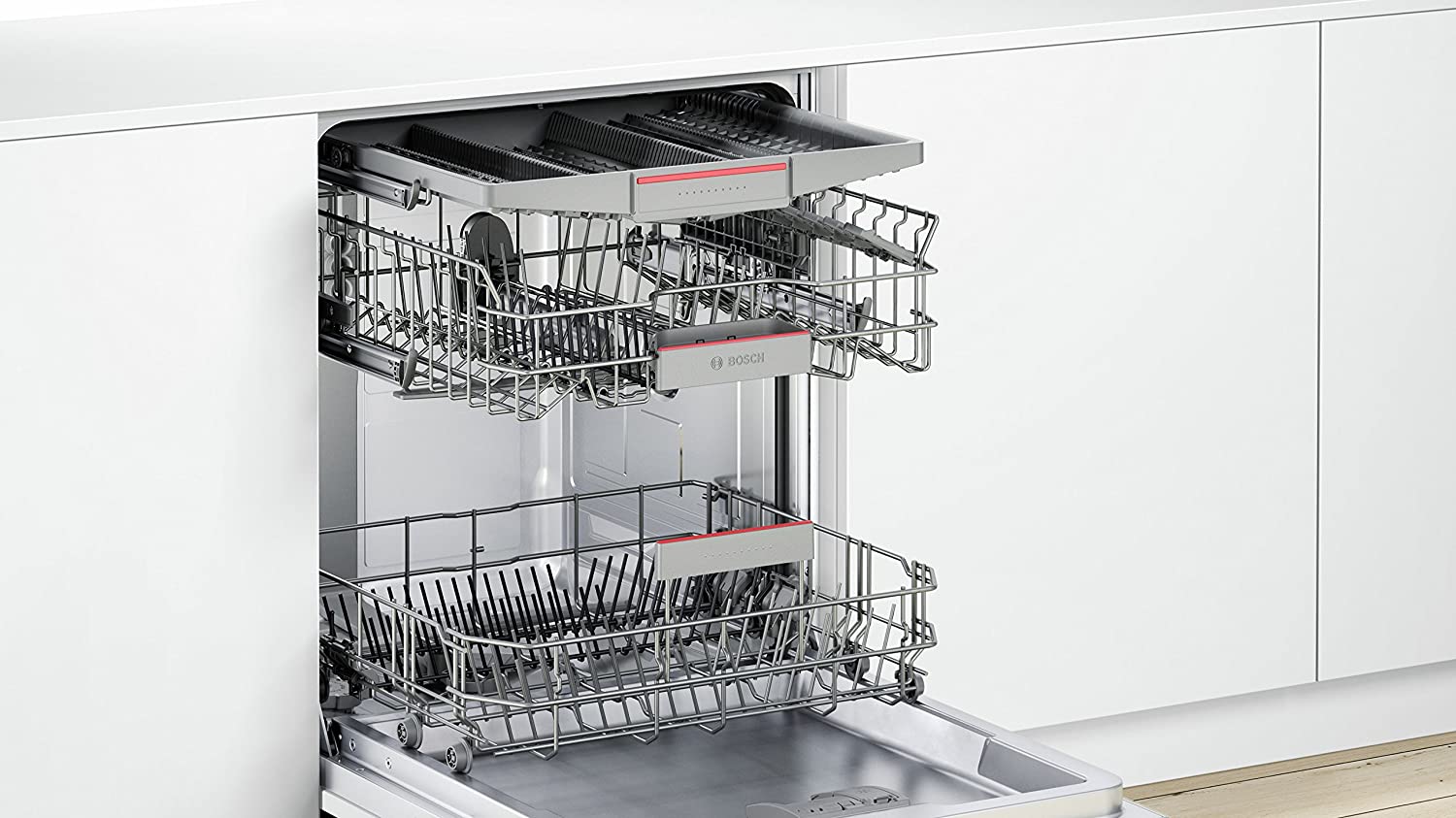

• Rackmatic – height-adjustable upper basket (three-stage)
• Folding parts in the upper basket (2x)
• Folding parts in the lower basket (4x)
• Cup storage space in the upper basket (2x)
